Prysmian Group Voltage Drop Calculator

Prysmian Group's Voltage Drop Calculator is a straightforward and efficient tool designed to help you determine the Maximum Circuit Distance and Minimum Conductor Size required to maintain a specified voltage drop. This application is tailored specifically for contractors, electricians, and other electrical professionals who need precise calculations for their projects.

Key Features:

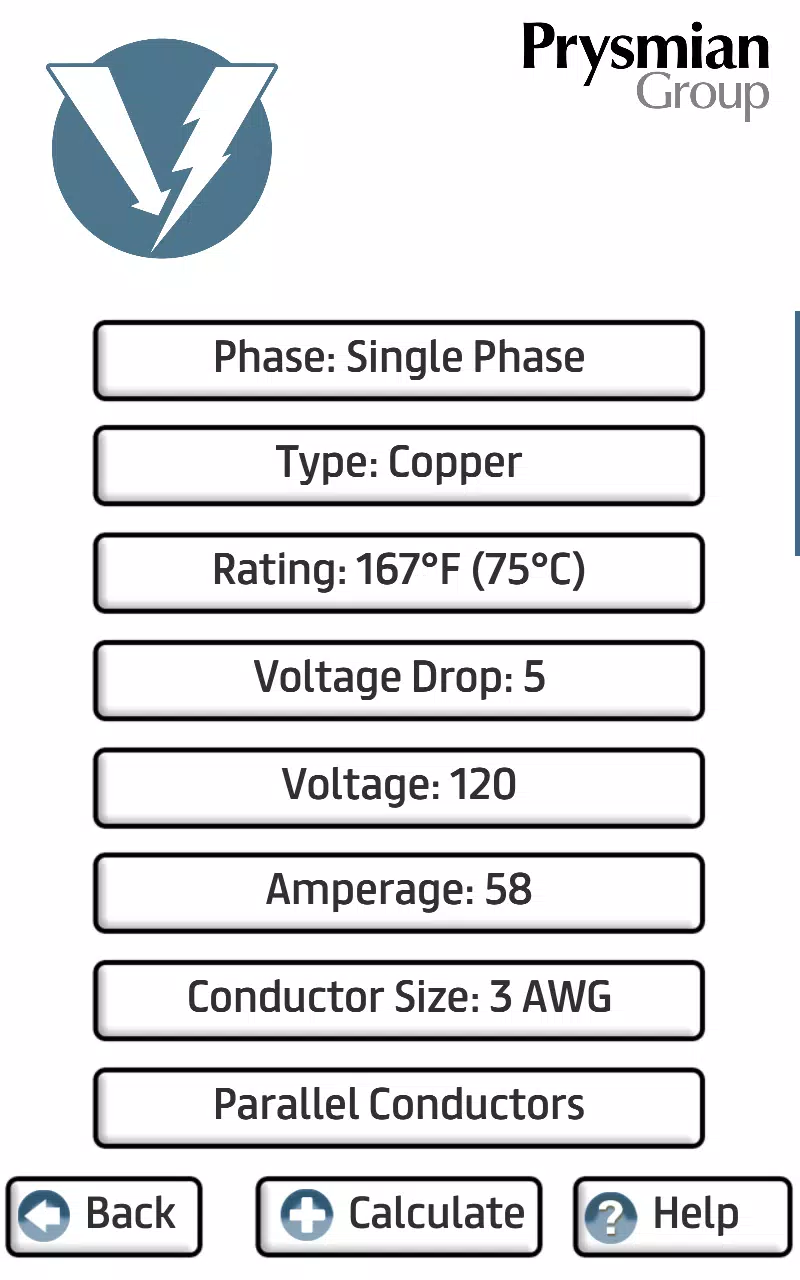

• Minimum Conductor Size Section: This section provides critical information including the required conductor size, actual voltage loss, maximum allowable voltage loss, and maximum amps for the conductor. The amperage values are derived from the NEC® table T310.15 (B) (16) at a 75°C rating. It's important to note that the conductor sizes are calculated based on the amperage value provided by the user, rather than the expected load, which might sometimes necessitate a larger conductor size to ensure optimal performance.

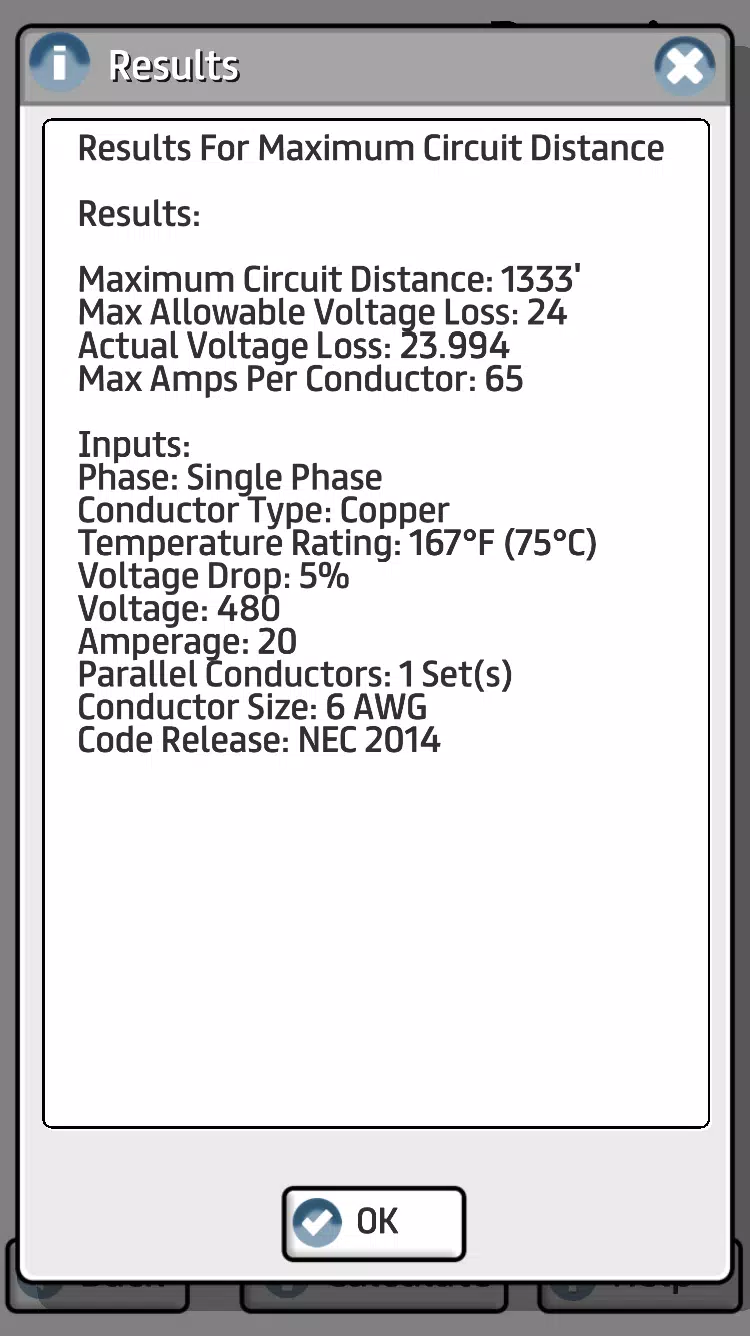

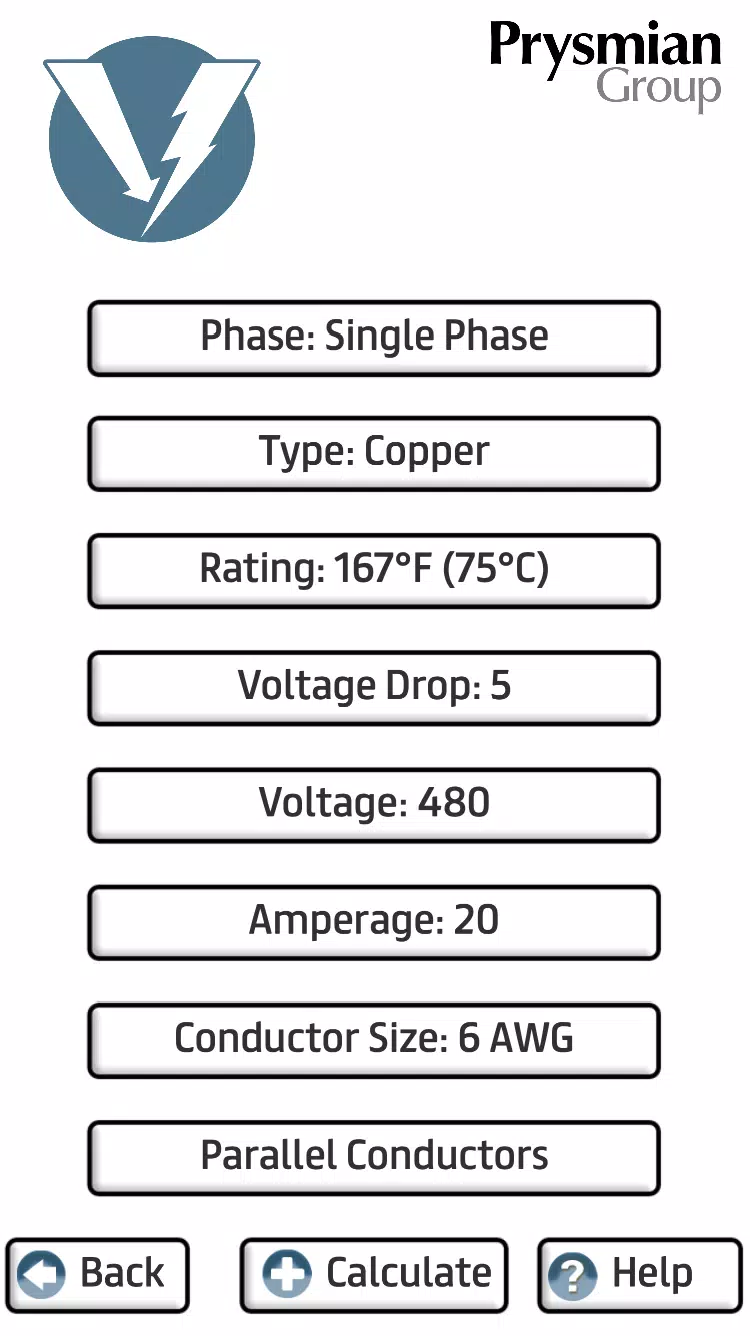

• Maximum Circuit Distance Section: This feature displays the maximum circuit distance, allowable voltage loss, actual voltage loss, and maximum amps for the selected conductor. This allows users to easily identify the appropriate distance for their specific application while ensuring compliance with industry standards.

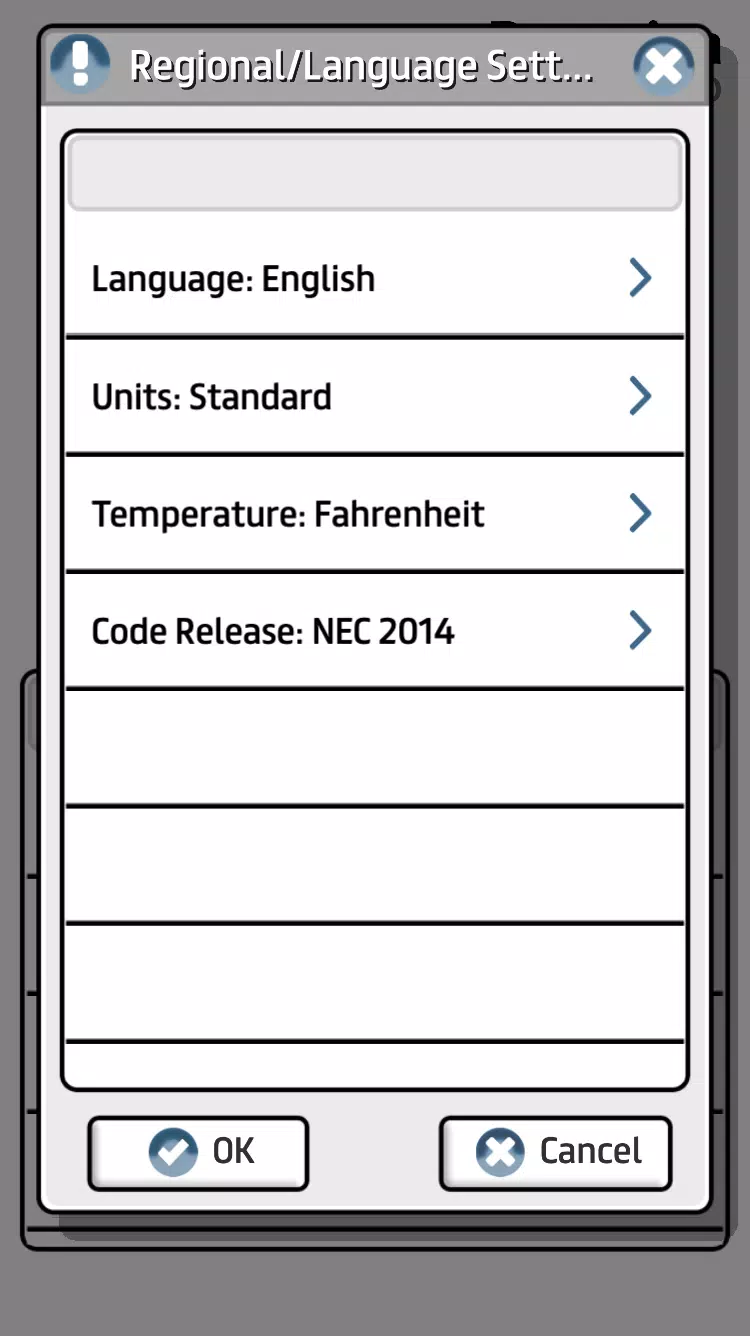

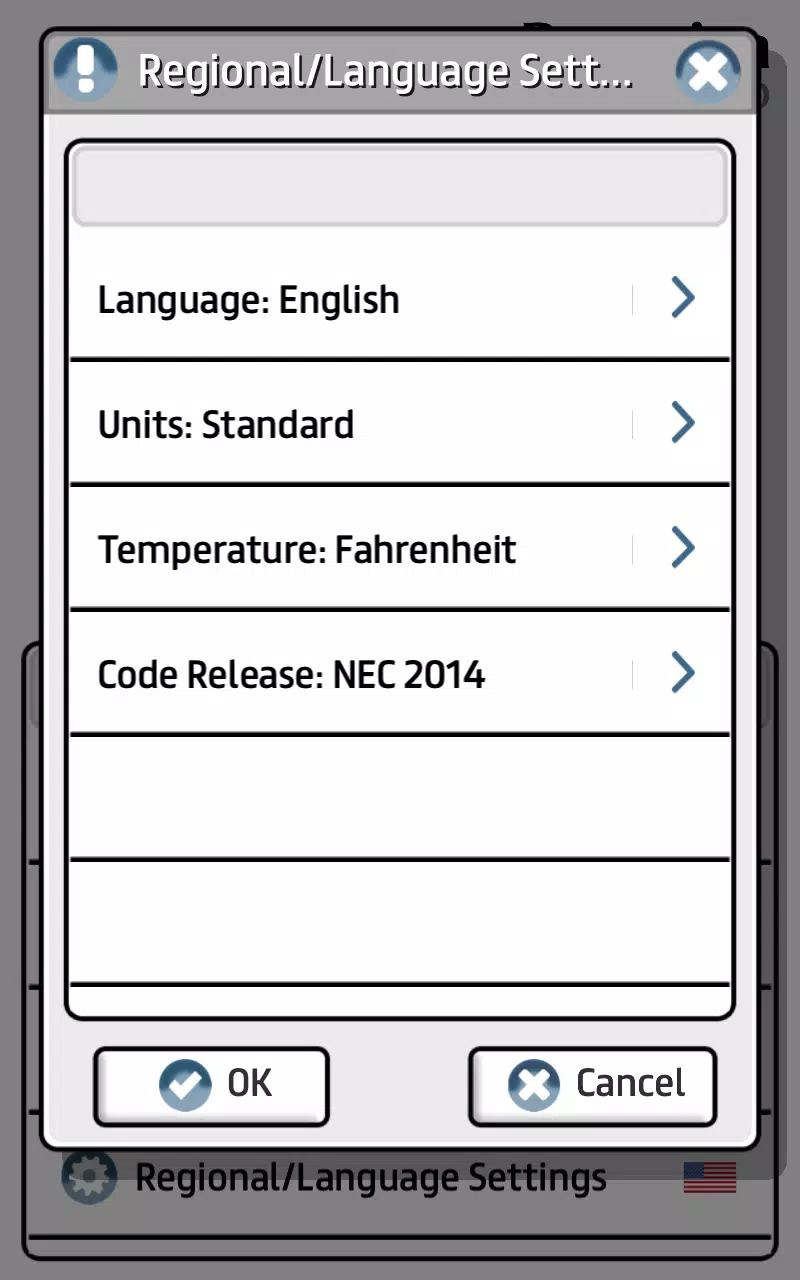

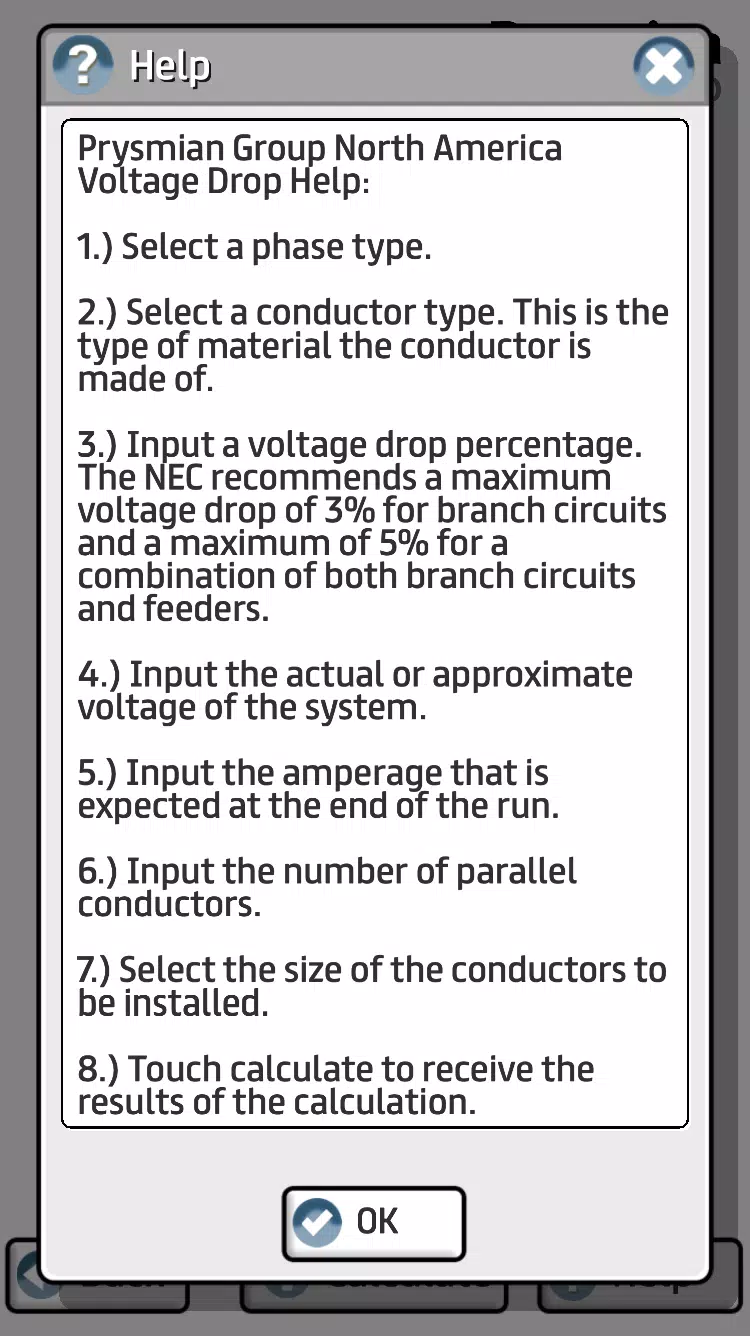

• Code Selection: The calculator supports Code Selection for NEC® 2011, 2014, and 2017, making it versatile and compliant with various regulatory requirements.

• Metric or Standard Conductors: Users can choose between metric or standard conductors, providing flexibility for both domestic and international applications.

User Experience:

With its intuitive interface, the Prysmian Group Voltage Drop Calculator simplifies the process of determining voltage drop parameters, thereby saving time and reducing errors. Whether you're working on residential, commercial, or industrial projects, this tool ensures accuracy and reliability in your electrical design and installation processes.

By leveraging the Prysmian Group Voltage Drop Calculator, you can streamline your workflow, enhance project efficiency, and meet all necessary safety and regulatory standards.
